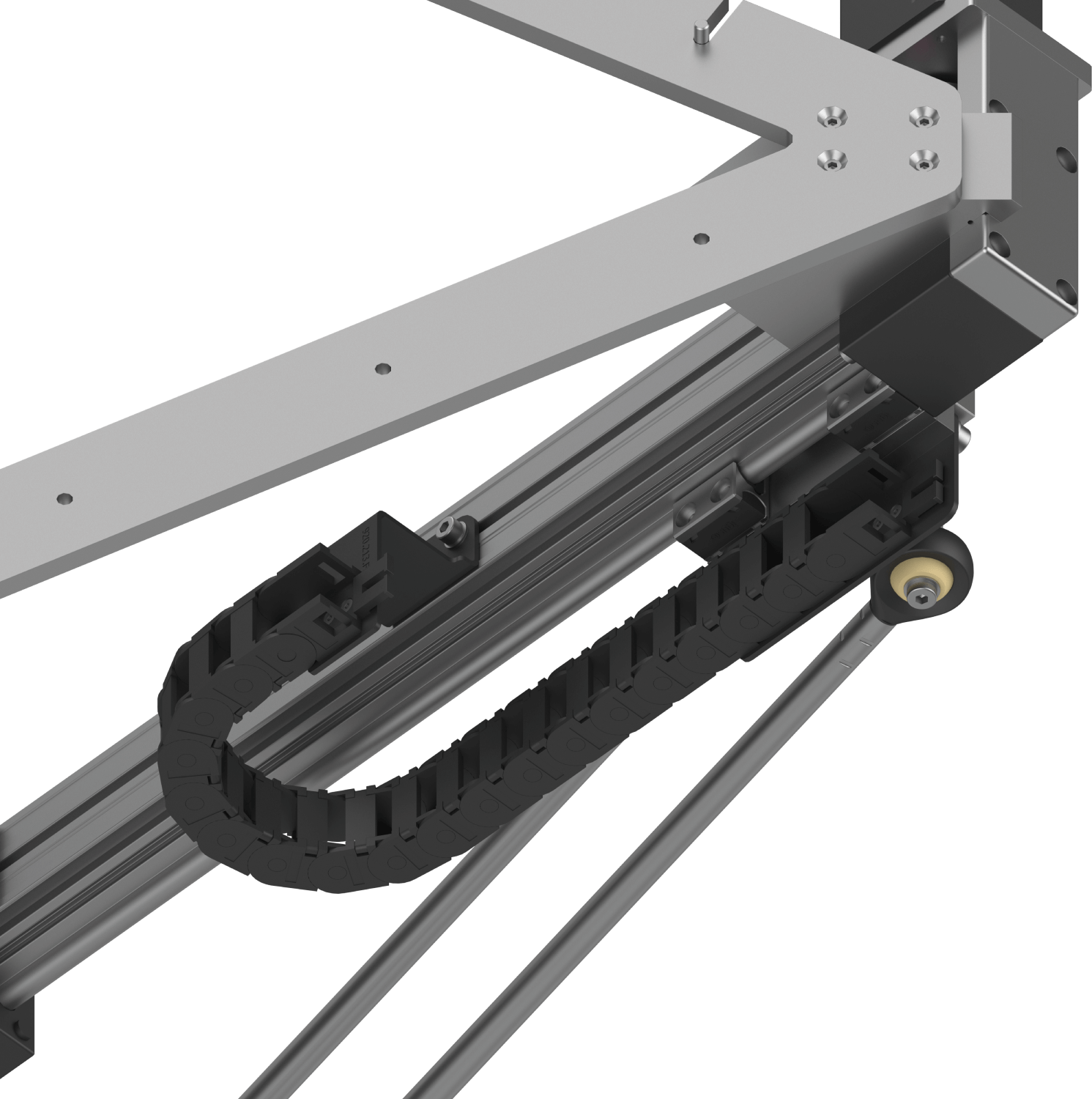

Save time and money with the e-chain set for the 2-axis Delta robot
DLE-ZR-0002-48-0004-00-0 - Working range: 700 mm
For safe cable routing to the tool
Open design - e-chain® can be opened in the inner radius


1 complete set consists of:

<ul>
<li>E2i.15.20.048.0 energy chain</li>
<li>connecting elements</li>
<li>Separators (1x per 2nd link)</li>
<li>Fixed point/driver plate</li>
<li>Mounting material</li>
</ul>

E2.1 series e-chains are characterized by a long service life, particularly
quiet running, and easy filling and installation.

Energy Chain Set for igus 2-axis Delta robot - 700 mm
